Examples

In this section you can find examples of how to use the esthesis CORE Digital Twin API to interact with Digital Twins.

Preparation

Prerequisites

You must meet the following prerequisites to follow the examples below:

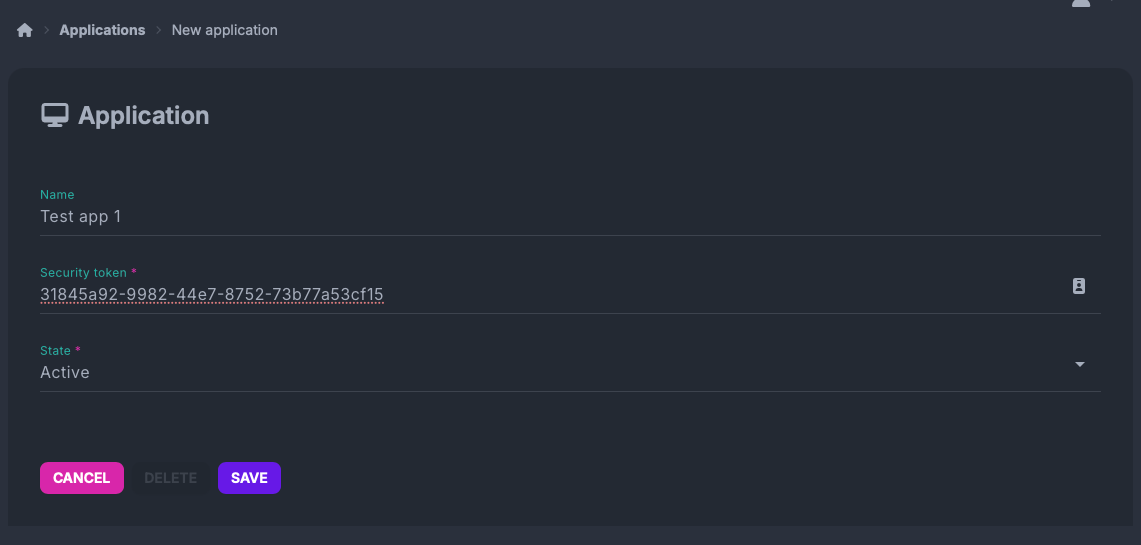

You must have created an Application in esthesis CORE. Make the application Active and note down the token assigned to it:
You must have a shell with the curl command available.
You must have at least one device connected to esthesis CORE.
Optionally, you may have the jq utility installed to parse JSON responses.

Authentication

Authentication to the Digital Twin API is taking place via a custom HTTP header X-ESTHESIS-DT-APP. You must include this header in every request to the API, with the value being the token of the application you created in esthesis CORE. For example, if your token is abc123, you would include the header as follows:

curl -H "X-ESTHESIS-DT-APP: abc123" https://...

Examples

Set the following environment variables, so that you do not have to repeat them in every example. Make sure you replace the values with the actual values from your own esthesis CORE installation:

export ESTHESIS_DT_TOKEN=abc123
export ESTHESIS_CORE_DT_URL=http://my-esthesis-core-url/api/dt

Do not forget to replace dash-dev-1 device hardware ID used in the following examples with an actual hardware ID of a device connected to your esthesis CORE installation.

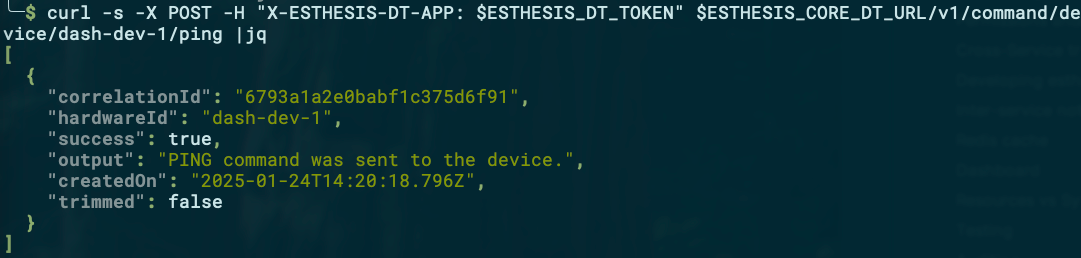

Example 1: Ping a device, synchronously

Request:

curl -s -X POST -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/command/device/dash-dev-1/ping" | jq

Reply:

Example 2: Ping a device, asynchronously

Request:

curl -s -X POST -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/command/device/dash-dev-1/ping?async=true" | jq

Reply: The reply is empty, as the command was sent asynchronously.

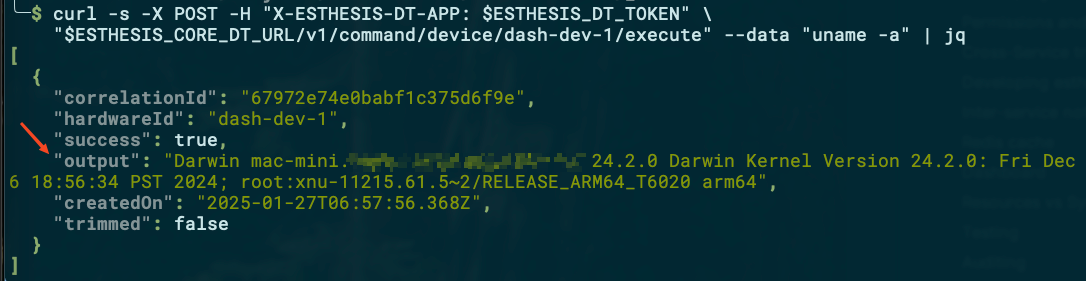

Example 3: Send a command to a device, synchronously

Request:

curl -s -X POST -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/command/device/dash-dev-1/execute" --data "uname -a" | jq

Reply:

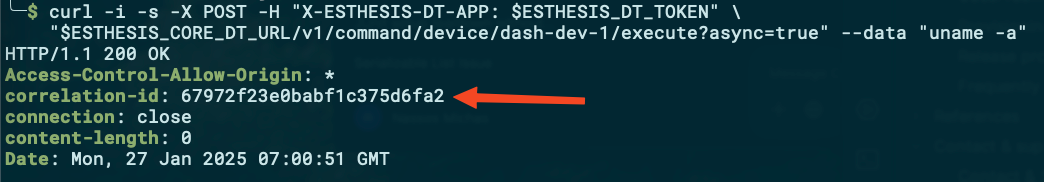

Example 4: Send a command to a device and receive the reply asynchronously

Send command

Request:

curl -i -s -X POST -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/command/device/dash-dev-1/execute?async=true" --data "uname -a"

Reply:

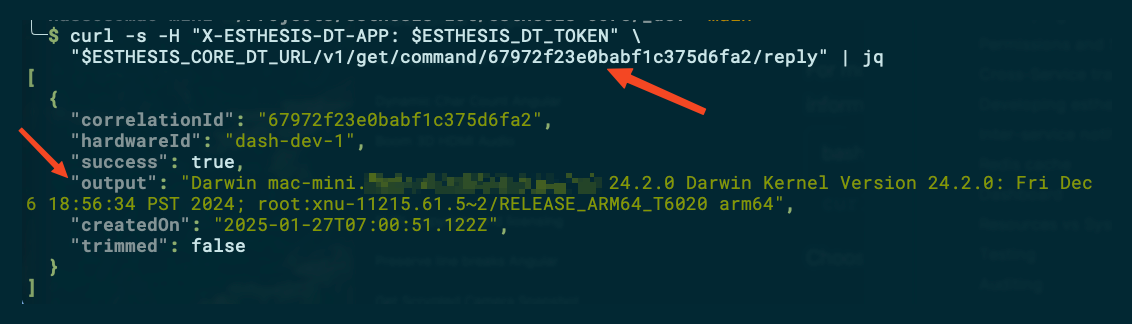

Get reply

Request:

Pass the correlation-id from the previous response to get the reply:

curl -s -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/get/command/67972f23e0babf1c375d6fa2/reply" | jq

Reply:

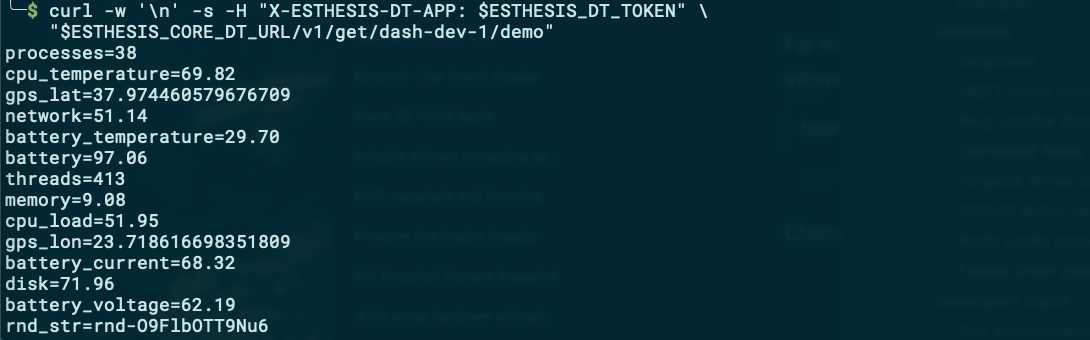

Example 5: Get all available measurements for a category

Request:

curl -w '\n' -s -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/get/dash-dev-1/demo"

Reply:

Example 6: Get a specific measurement from a category

Request:

curl -w '\n' -s -H "X-ESTHESIS-DT-APP: $ESTHESIS_DT_TOKEN" \
    "$ESTHESIS_CORE_DT_URL/v1/get/dash-dev-1/demo/cpu_temperature"

Reply:

Last modified: 06 May 2025
